High Temperature Axial Fan 150°C □120 mm | MMotors VA12/2HT
- Brand: MMotors JSC
- Product Code: MMotors VA12/2H [120mm] 0149
- EAN: 3800211050149
- Availability: In Stock
76.00€
The MMotors VA12/2H incorporates carefully selected components for hot air and technical ventilation applications where reliability, stable operation and thermal resistance are essential.
- ✔ Aluminium housing, corrosion-resistant and suitable for demanding thermal environments.
- ✔ Fiberglass-reinforced FRP impeller, designed for continuous operation with hot air up to 150°C.
- ✔ High-temperature motor, optimised for technical ventilation and hot air circulation.
- ✔ Integrated CelsiClock® 99/177 thermal indicator for visual verification of maximum operating temperature.
- ✔ Double-sealed NSK Japan bearings providing quiet operation, long service life and minimal maintenance.
Double Sealed
Up to 30,000 Hours
Low Maintenance
Designed for Technical Equipment and High-Temperature Systems
The MMotors VA12/2H has been developed for applications requiring hot air circulation, extraction or distribution at temperatures up to 150°C. Its square axial design allows easy integration into technical equipment, heating systems and light industrial installations.
With airflow up to 150 m³/h, an aluminium housing and a fiberglass-reinforced FRP impeller, it is suitable for installations where reliability, thermal resistance and continuous operation are critical requirements.

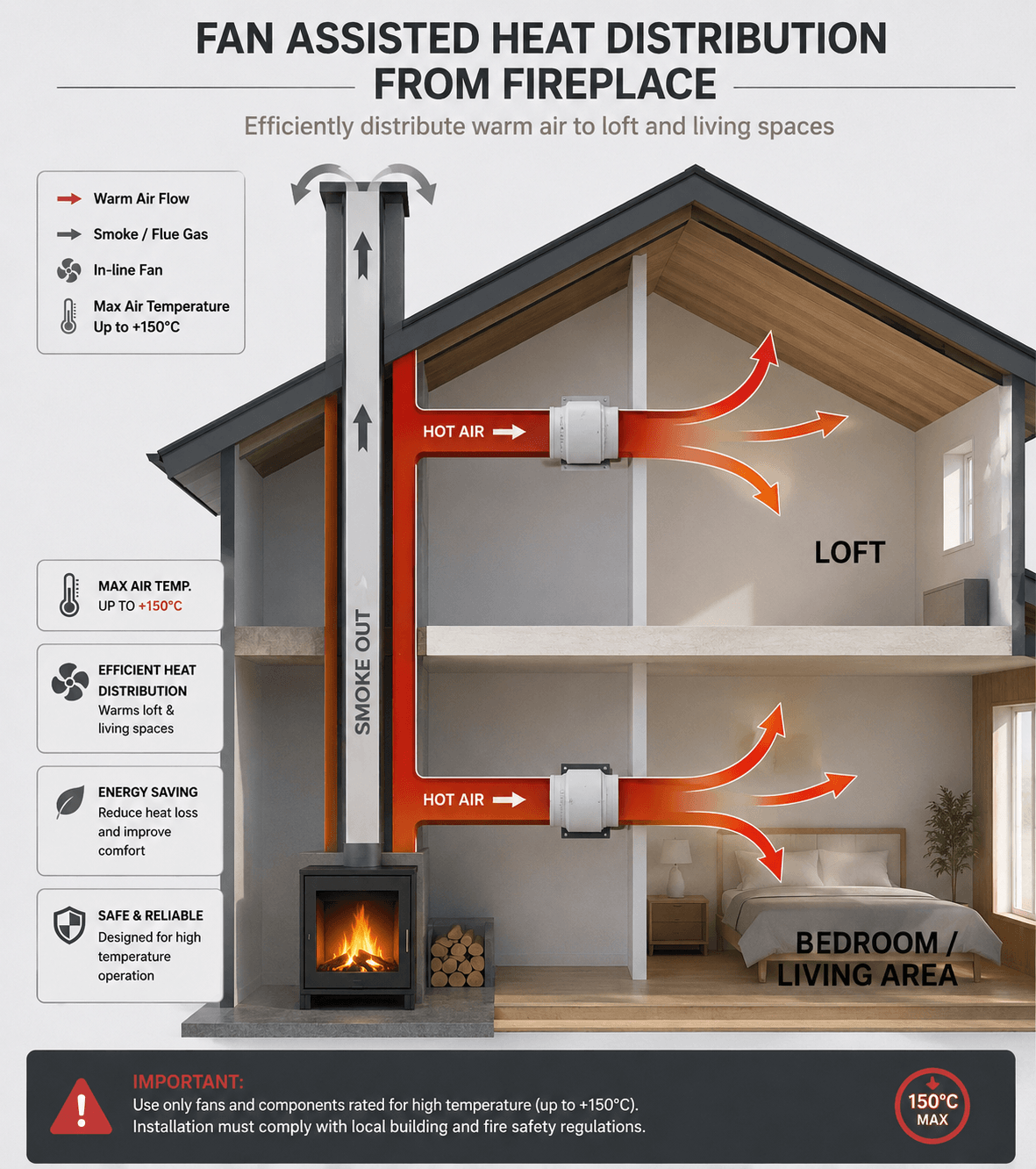

Recommended Applications for VA12/2H
Its compact □120 mm design, capability to operate with hot air up to 150°C and robust aluminium construction make the VA12/2H suitable for a wide range of heating and technical ventilation applications.
- ✅ Warm air heating systems
- ✅ Heat recovery systems
- ✅ Heat exchangers
- ✅ Fireplaces and stoves
- ✅ Technical ventilation equipment
- ✅ Electrical cabinets and technical enclosures
- ✅ Light industrial equipment
- ✅ Specialised machinery
- ✅ Thermal extraction systems
- ✅ Hot air applications up to 150°C
Installation Recommendations
To ensure optimum performance and long service life, the following recommendations should be observed during installation and commissioning.
- ✅ Install the fan according to the airflow direction.
- ✅ Ensure adequate ventilation around the motor.
- ✅ Use only in applications compatible with hot air up to 150°C.
- ✅ Complete electrical connections according to local regulations.
- ✅ Keep air inlet and outlet areas free from obstructions.
- ✅ Periodically inspect the installation condition.
- ❌ Do not use for transporting smoke or combustion gases.
- ❌ Do not install inside combustion chambers.
- ❌ Do not expose directly to flames or embers.
✔ Aluminium housing
✔ NSK Japan bearings
✔ Continuous operation
Additional MMotors Motor Protection
MMotors motors incorporate a special winding impregnation technology that helps protect electrical components against moisture, dust and demanding operating conditions.
This process improves motor protection and contributes to stable operation even in hot air and technical ventilation applications designed for continuous use.
- ✅ Additional protection against moisture and particles
- ✅ Improved motor electrical insulation
- ✅ Reliable long-term operation
- ✅ Suitable for high-temperature applications
| Technical Specifications | |
|---|---|
| Model | VA12/2H |
| Speed | 2,650 rpm |
| Power Consumption | 18 W |
| Voltage (50 Hz) | 230 V |
| Airflow | 150 m³/h |
| Maximum Pressure | 75 Pa |
| Noise Level at 1 m | 39 dB(A) |
| External Dimensions | 119 × 119 mm |
| Length | 38 mm |
| Housing Material | Aluminium |
| Impeller | Fiberglass Reinforced FRP |
| Protection Rating | IP44 |
| Bearings | NSK Japan · Double Sealed |
| Maximum Air Temperature | 150°C |
📋 RECOMMENDED USE
This square axial fan is designed for hot air distribution and extraction in heating systems, heat recovery installations, technical ventilation and industrial applications.
To ensure optimum performance and long service life, the fan should be used exclusively for transporting clean air and operated within the conditions specified by the manufacturer.
- ✅ Hot air distribution and extraction
- ✅ Compatible with heating and heat recovery systems
- ✅ HVAC, technical ventilation and industrial applications
- ✅ Recommended for clean, residue-free air
⚠️ CELSICLOCK® 99/177 SEAL
MMotors hot air fans incorporate a CelsiClock® 99/177 thermal indicator installed directly on the motor.
This system allows visual verification of the maximum temperature reached during fan operation.
It provides a quick reference for checking thermal operating conditions in hot air applications.
CelsiClock® is an informational thermal indicator and does not perform control, regulation or thermostat functions.
Tags: MMotors, VA12/2HT, high temperature, axial fan, hot air, 150°C, square fan, □120mm, heating, technical ventilation, industrial, NSK Japan, IP44
| Fan Specifications | |
| Rotation speed | 2.650 rpm |
| Input power | 18 W |
| Voltage (50 Hz) | 230 V |
| Airflow | 150 m³/h |
| Max. static pressure | 75 Pa |
| Sound level at 1 m | 39 dB(A) |
| Duct Dimensions | □120 mm |
| Body material | Aluminum |
| Protection rating (IP) | IP 44 |
| Max. air temperature | 150°C |
